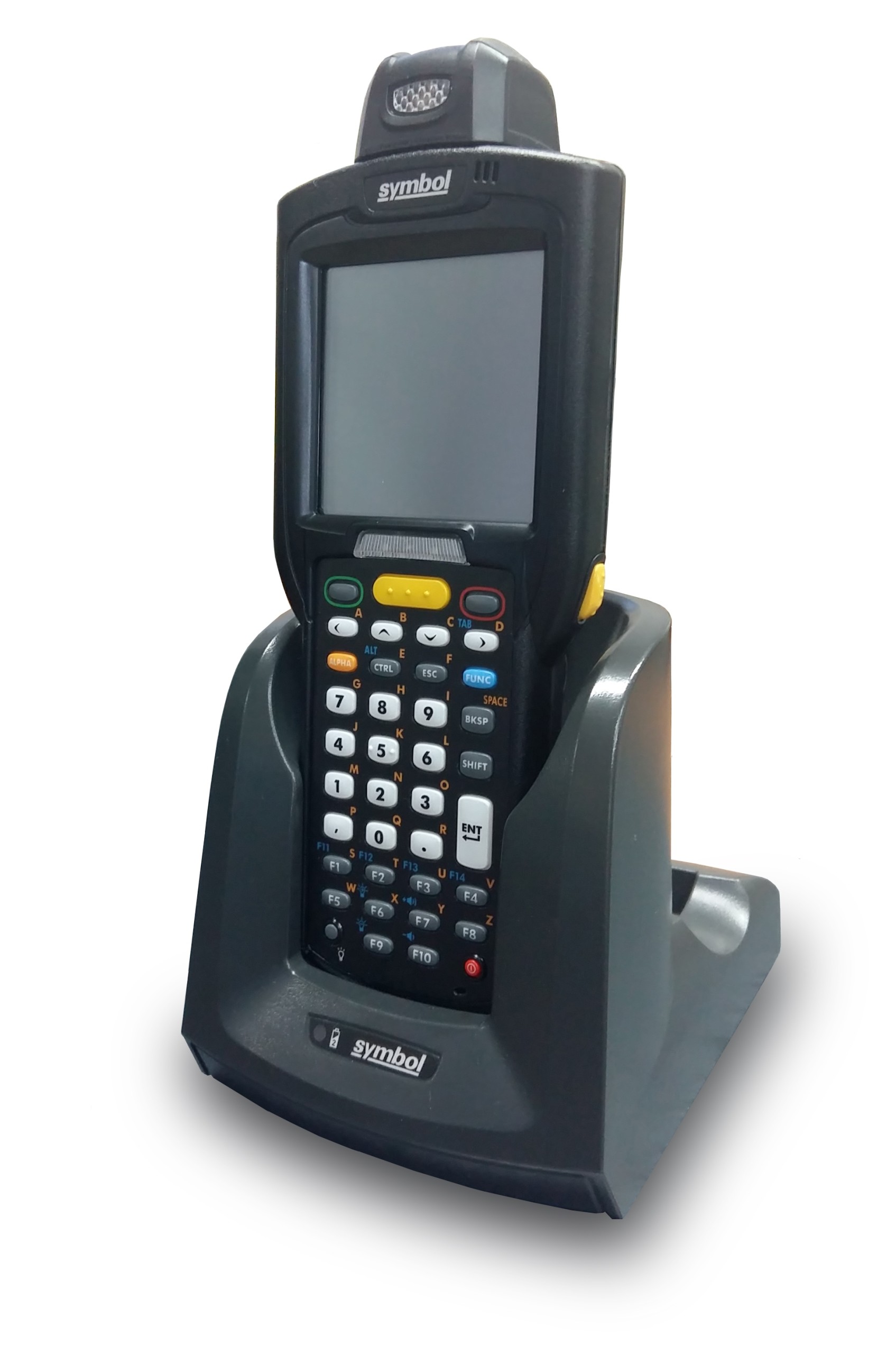

HHT Hand-Held Terminal
- Portable, wireless
- Optional laser barcode reader
- Docking port for communication
- Sharp, easy-to-read display
- Energy-saving
- Humidity resistant
- Use a single terminal for several systems
The HHT hand-held terminal facilitates data collection from meters being tested on MeterTest’s ASTeL system. The data can be read from a meter and entered into the terminal’s memory using an integrated keyboard or a laser barcode reader. The docking port provides a connection to the computer as well as fast, convenient data transmission. Use a single terminal for servicing a number of meter test systems equipped with docking ports.
OPERATIONAL HIGHLIGHTS
The HHT hand-held terminal is a portable computer, operating together with the Windows® CE operating system. A high resolution and touch sensitive backlit LCD display makes unit operation easy.
Fast and convenient data entry is facilitated by a humidity-resistant keyboard with 28 or 38 keys, or an alphanumeric keyboard with 48 keys.
The optional laser barcode reader significantly accelerates data collection operations, improving accuracy and efficiency. The rotating laser scanner head can be easily adjusted for left-handed and right-handed people.
| Display | 3.0 in. color (TFT) (320 x 320) touch display with backlighting | ||
| Codes | UPC E, UPC A, MSI, EAN 8, 2 FROM 5 INTERLEAVED, EAN 13, CODABAR, CODE 39, D2OF5, I2OF5, CODE 11, CODE 93, CODE 128, PDF417, TRIOPTIC 39, MICROPDF, MACROPDF, MAXICODE, DATAMATRIX, QRCODE, MACROMICROPDF, RSS-14, RSS LIMITED, RSS EXPANDED, POINTER, IMAGE, SIGNATURE, WEBCODE, CUECODE, COMPOSITE_AB, COMPOSITE_C, TLC39, USPOSTNET, USPLANET, UKPOSTAL, JAPPOSTAL, AUSPOSTAL, DUTCHPOSTAL, CANPOSTAL, CHINESE_2OF5 | ||
| Range on 100% UPCA at 30 ft./candles | Near: 2.5in./63.5mm Far: 14.2in./360.7mm | ||
| Sensor Resolution | 752 x 480 pixels | ||
| Field of View | Horizontal: 38°; Vertical: 25° | ||
| Skew Tolerance | ±60° | ||
| Pitch Tolerance | ±60° | ||
| Roll Tolerance | 360° | ||
